Recess the G5!

-

One of the customizations we made to our panel is to recess the G5 (courtesy of Midwest Panels). Since it is positioned next to the prop controls (also recessed) we thought that would look nice, and it does.

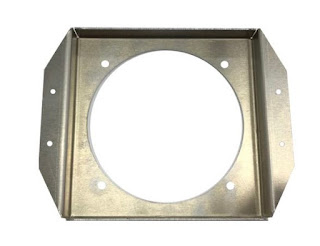

Recessing the G5 is easy using a $60 mounting bracket from Aircraft Spruce.

The GTN 650 is mounted right below the G5, so it is now easy to rest your fingers on the top of the GTN650 while twirling the G5 knob during turbulent times!
