Panel Update

-

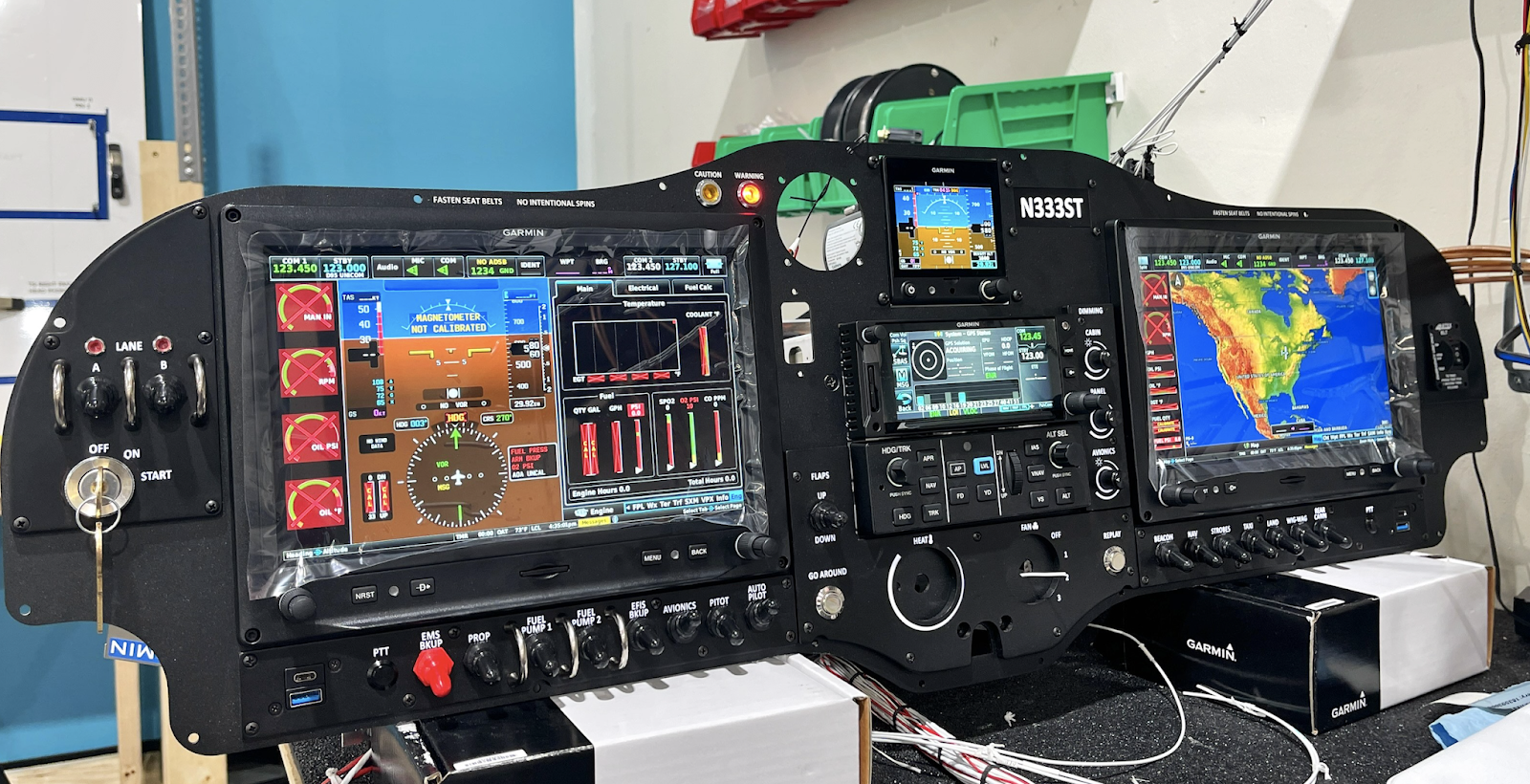

We received some more exciting pictures from MidWest Panel Builders on the progress of our panel for N333ST. The panel is powered up and fully lit! Hopefully we can install it in June.

We worked closely with Steve to add several customizations that deviate from the standard panel layout. We opted for a full IFR capable panel with V-PX circuit breakers which eliminate the normal circuit breakers on the panel, creating more space and allowing for a clean and symmetrical layout.


Note the backlight, it is custom made for the panel. We moved the switches so that aircraft controls are on the left and lights are on the right. This created enough space to move the USB ports to the bottom corners, so you can easily charge your ipad or phone.

The G5 flight instrument backup is still prominent in the center, but it recessed with a simple bracket. Neat!

More notes on the panel design here. Can't wait to get it installed.
